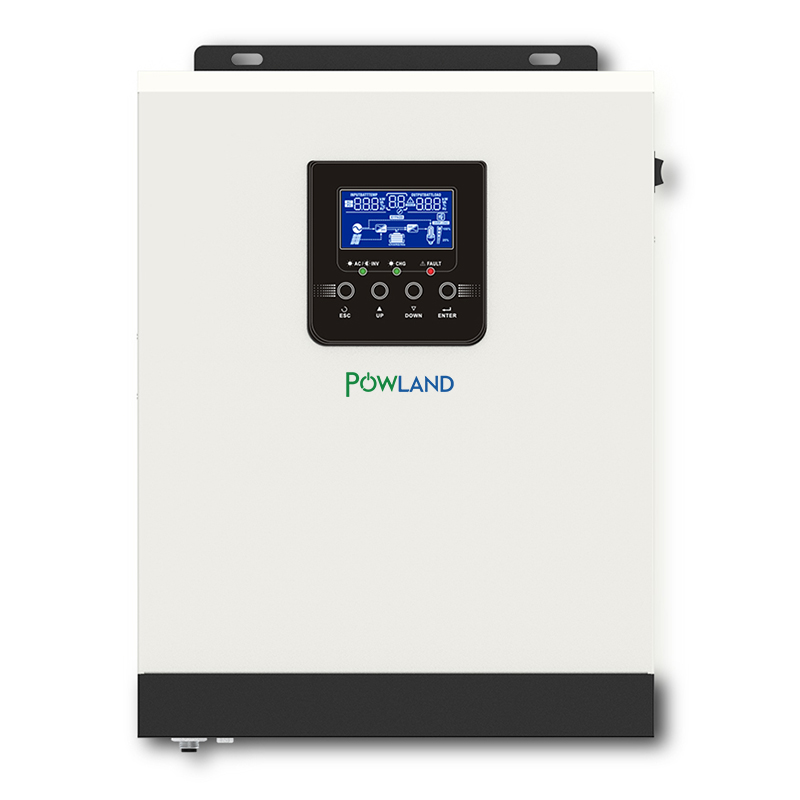

It is Pure Sine Wave Hybrid Solar Inverter Built-in PWM Solar Charge Controller for Home Use
Design with ac input /output 220-240vac single phase only. ( not Split phase 110/220vac)This is multi-function inverter/charger ,combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
MODEL |
Isolar SPH 3KW |
Rated Power |
3000VA/2400W |
INPUT |
|
Voltage |
230VAC |
Selectable Voltage Range |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
Frequency Range |
50Hz/60Hz(Auto sensing) |
OUTPUT |
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
Surgepower |
6000VA |
Efficiency(Peak) |
93% |
TransferTime |
10ms(for personal computers) 20ms(for home appliances) |
Waveform |
Pure Sine Wave |
BATTERY |
|
Battery Voltage |
24VDC |
Floating Charge Voltage |
27VDC |
Over charge Protection |
30VDC |
SOLAR CHARGER |
|
Maximum PV Array Open Circuit Voltage |
80VDC |
MPPT Range@Operating Voltage |
30-40VDC |
Maximum Solar Charging Current |
50A |
Maximum AC Charging Current |
20A or 30A |
Maximum Charging Current(Utility Charging+Solar Charging) |
80A |
Standby Power Consumption |
20W |
PHYSICAL |
|
Dimension.D*W*H(mm) |
305*272*100 |
Net Weight(kgs) |
5.2kg |
OPERATING ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
Operating Temperature |
0°C to 55°C |
Storage Temperature |
-15°C to 60°C |
POWLAND & EASUN machines are shipped randomly. If you have a specified brand, you can note it on the order, or if you have a customized logo, please contact our store manager penny@easunpower.com
