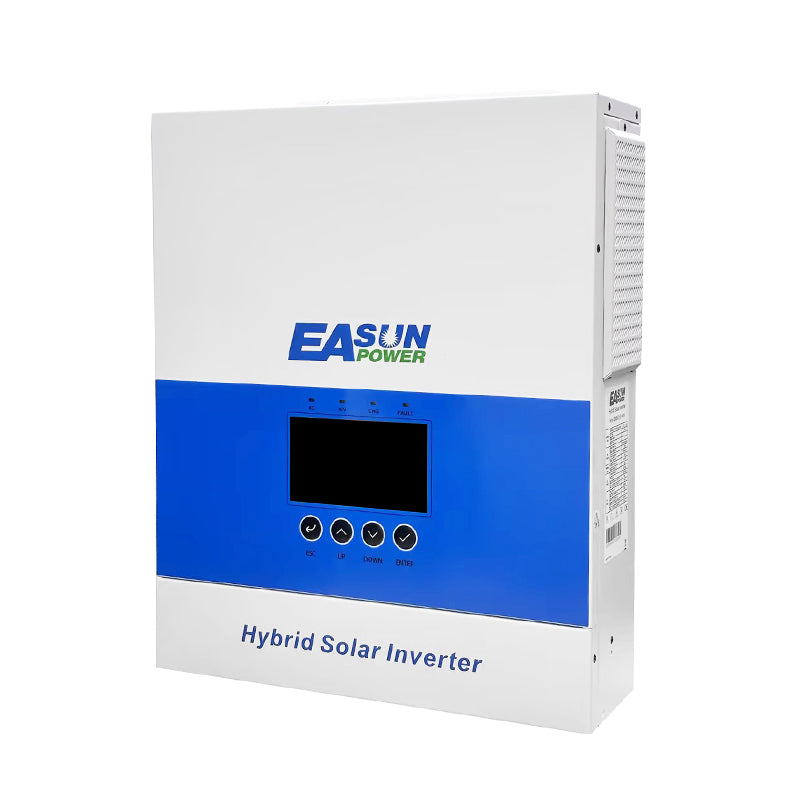

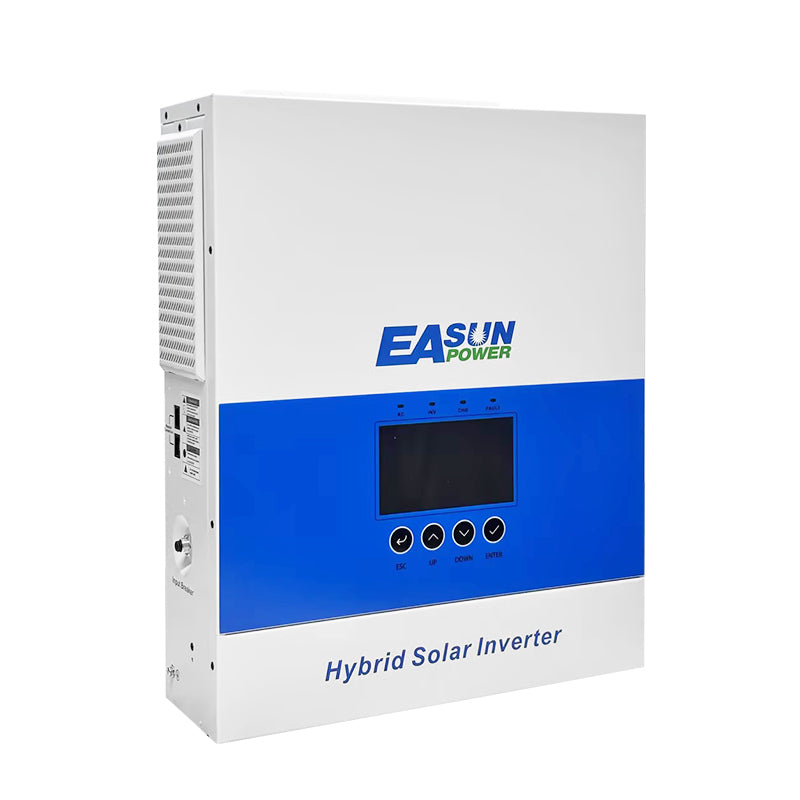

Easun Power 6200W Off Grid Solar Inverter MPPT 120A Charger With WIFI Parallel

SKU ISolar-SMG-II-6.2KP-wifi-2
Original price $717.00
Original price $717.00 - Original price $717.00
Original price $717.00
Current price $485.00
$485.00 - $485.00
Current price $485.00
HIGHLIGHT

Solar Inverter: 6.2KW DC 48V Pure Sine Wave AC Output 120V, Built-in Max 120A MPPT Solar Charger and Max 120A Utility Battery Charger, Max PV Input 500V (VOC), Dual PV Input.

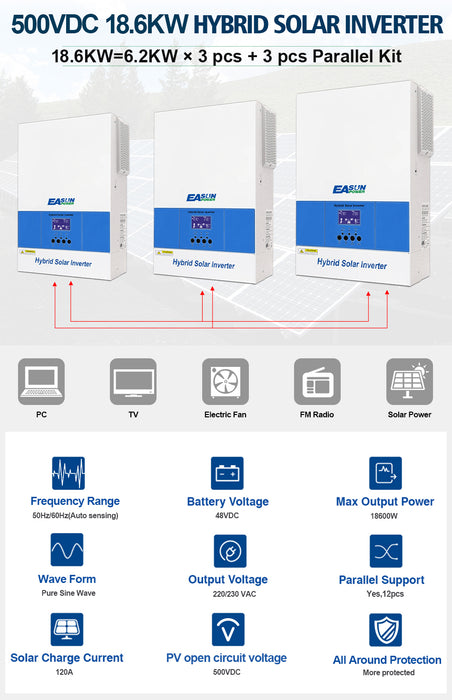

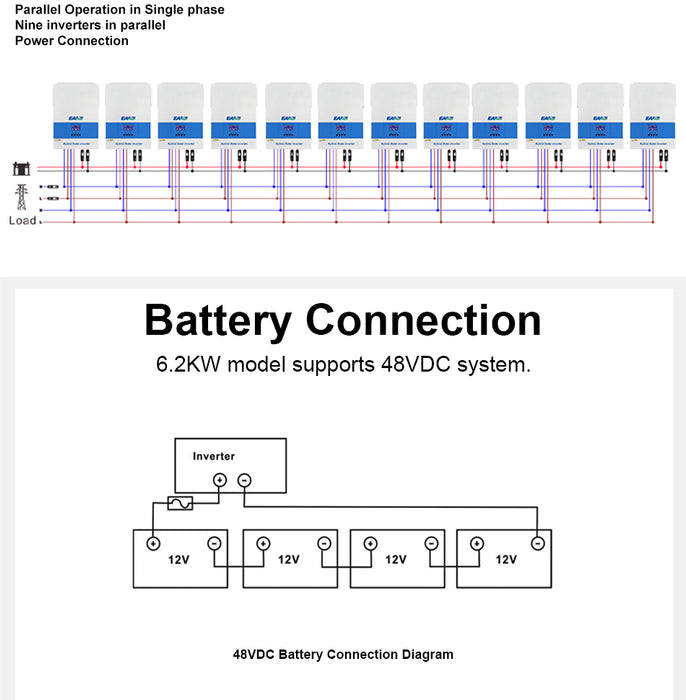

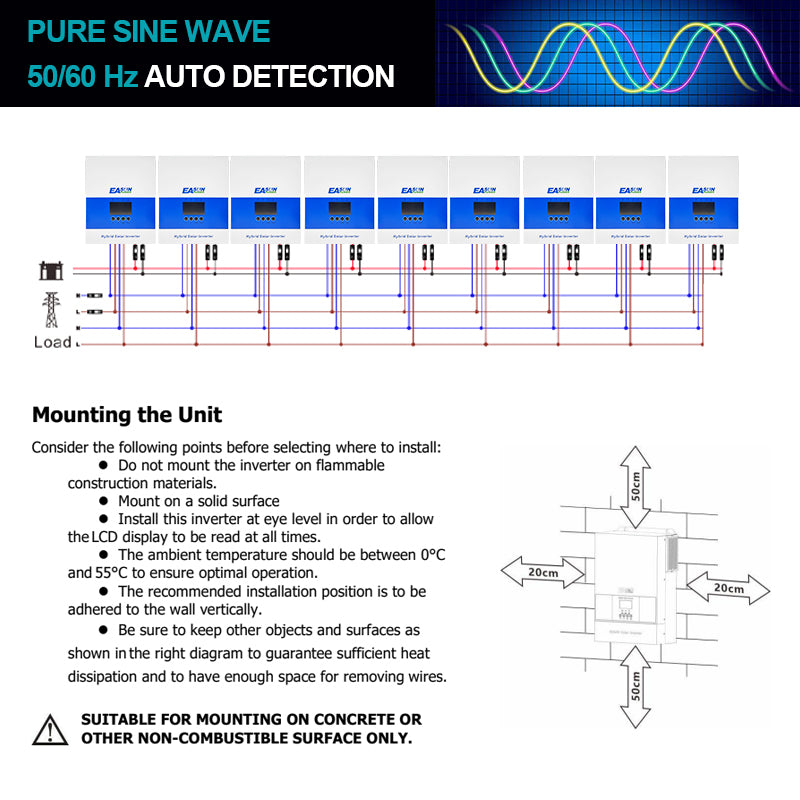

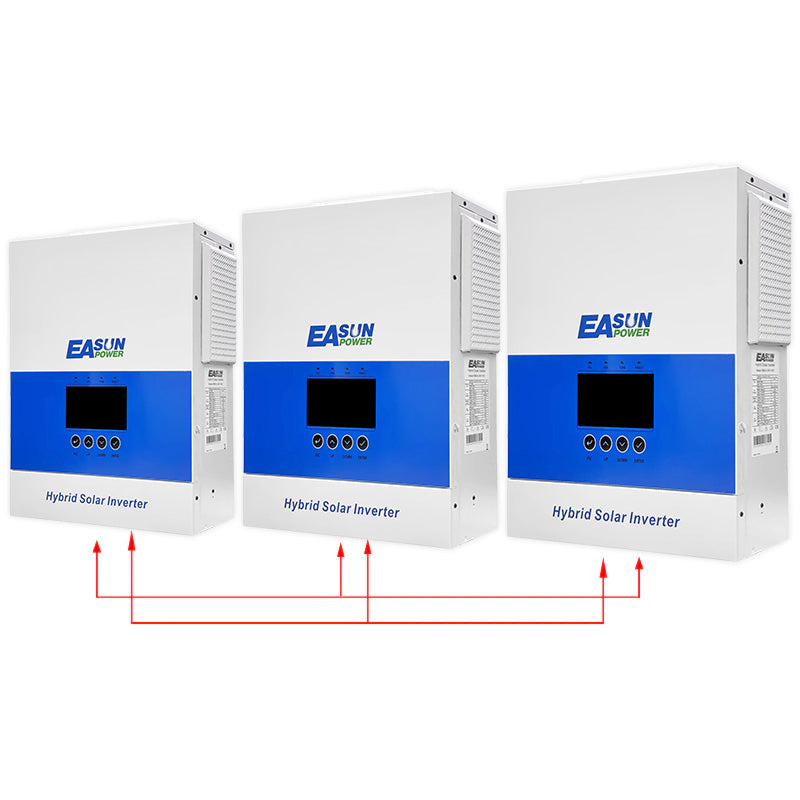

Parallel Kit: Built-in parallel kit, supports up to 12 parallel units, 220V/230V single phase (1 unit), 380V 3-phase support (3 units in parallel)

WIFI Mode: Built-in WIFI transmitter, can transmit inverter data to user's cell phone or computer via WIFI.

Battery-Free Support: Inverter can power loads from the PV array/AC grid without connecting the battery

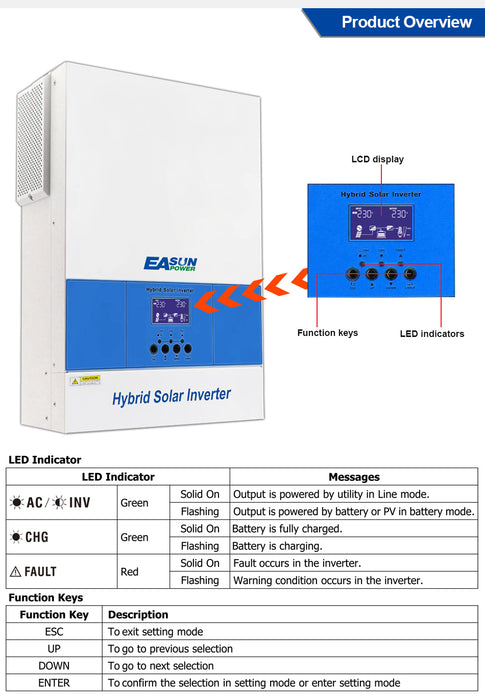

LCD Operation: Removable LCD control module with multiple BMS communication ports.

Free shipping

24 hours local delivery

Free returns

NO VAT

Secure payments

Request a quote

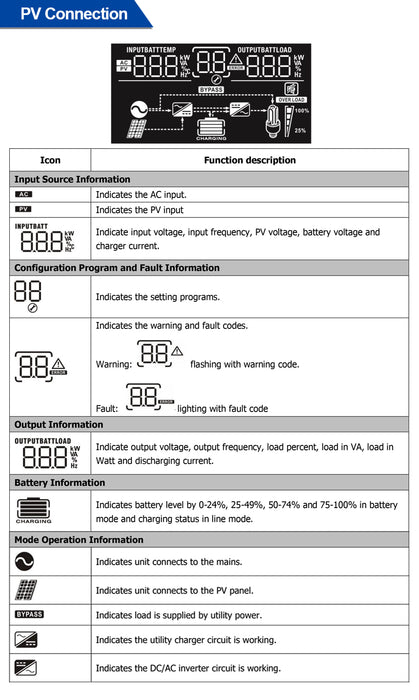

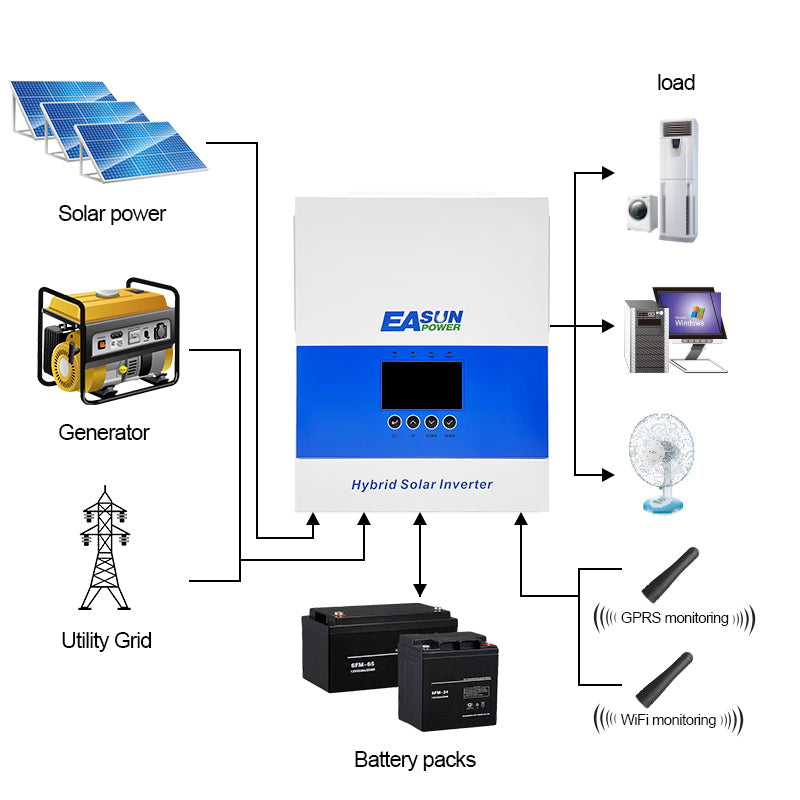

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Note: The inverter includes WiFi, which can be connected to mobile phone APP monitoring

Features:

  • pure sine wave soalr inverter
  • Output power factor 1
  • High PV input voltage range
  • Built-in MPPT soalr controller
  • Battery equalization function to optimize
  • Battery performance and extend lifecycle
  • Inverter running without barrery
  • Built-in anti-dusk kit for harsh environment
  • WIFI-GPRS remote monitoring (WIFI Plug included)
  • Detachable LCD(Optional)
  • Built-in Parallel Kit

MODEL

ISolar SMG II 6.2KP 48V WiFi

Capacity

6.2KVA/6.2KW

Parallel Capability

YES,12 Units

INPUT



Nominal Voltage

230VAC

Acceptable Voltage Range

170-280VAC(For personal Computer);:90-280vac(For Home Appliances)

Frequency

50/60 Hz(Auto sensing)

OUTPUT



Nominal Voltage

220/230VAC+5%

Surge Power

12400VA

Frequency

50/60Hz

Waveform

Pure Sine wave

Peak Eficiency(PV to INV)

96%

Peak Efficiency(Battery to INV)

93%

Crest Factor

3:1

BATTERY



Battery Voltage

48VDC

Floatig Charge Volage

54VDC

OverCharge Protectin

63VDC

Charging Method

CC/ CV

Solar Charger & AC Charger



Max.PV Array Power

6500W

Max.PV Array Open Circuit Voltage

500VDC

PV Array MPPT Voltage Range

60VDC~450VDC

Max.Solar Input Current

27A

Max.Solar Charge Current

120A

Max.AC Charge Current

80A

Max.Charge Current

120A

PHYSICAL



Dimensions,D x W x H(mm)

450*300*130

Package Dimensions,D x W x H(mm)

540x390x210

Net Weight(Kg)

12

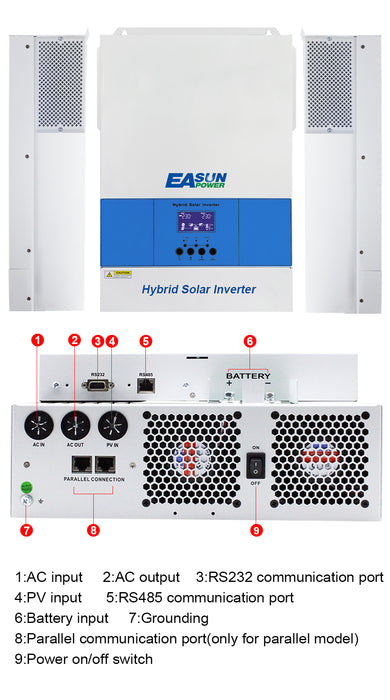

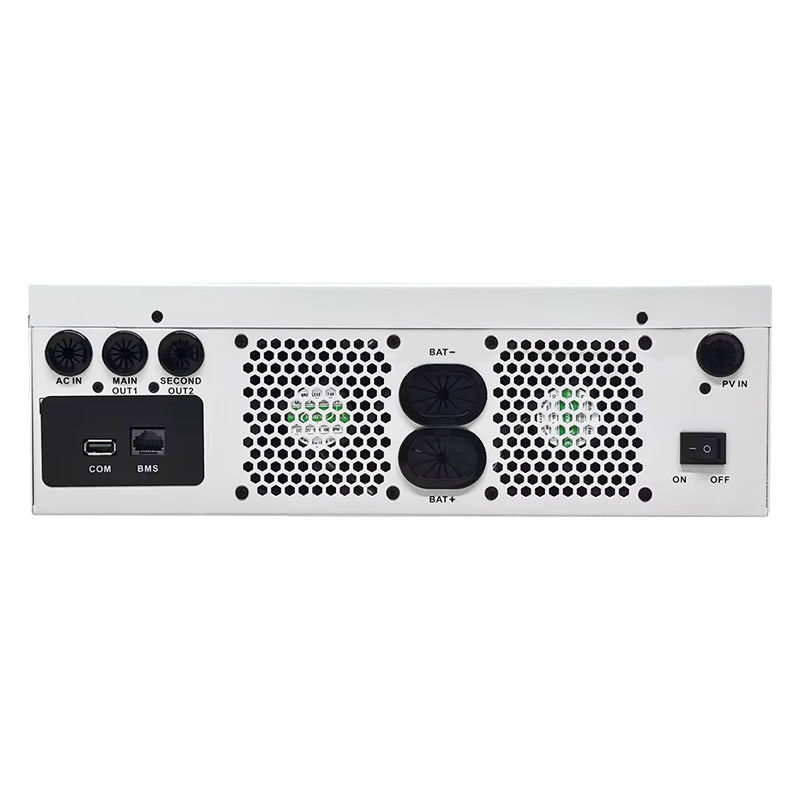

Communication Interface

RS232 / RS485 / Dry-contact

ENVIRONMENT



Operating Temperature Range

(-10°C to 50°C)

Storage Temperature

(-15°C ~ 50°C)

Humidity

5% to 95% Relative Humidity ( Non-condensing )
