EASUN 11KW Off Grid inverter 150A Double MPPT Input Support Parallel BMS with WIFI

Original price $1,599.00
Original price $1,599.00 - Original price $1,599.00
Original price $1,599.00
Current price $1,000.00
$1,000.00 - $1,000.00
Current price $1,000.00
Availability:
in stock, ready to be shipped
HIGHLIGHT

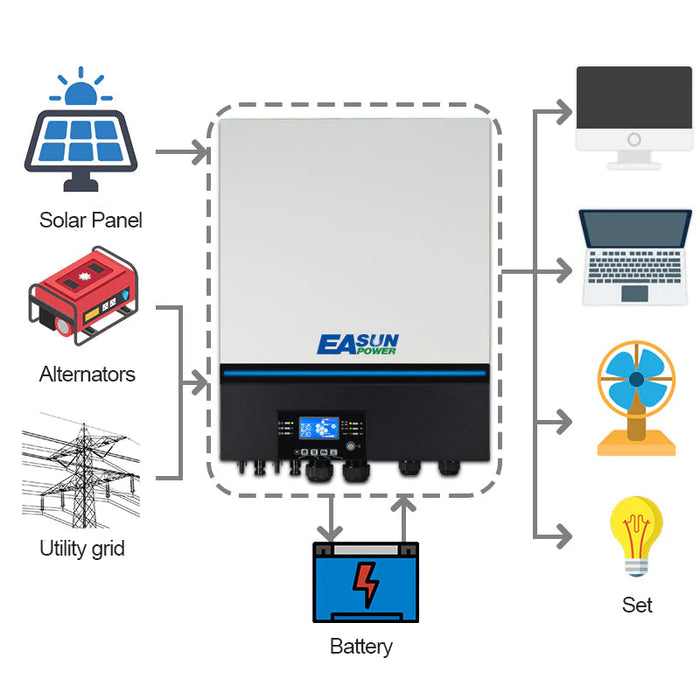

  • All in one unit: 11KW Pure Sine Wave Solar Inverter, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit: 500VDC. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP and coumputer.
  • Stable AC output and Smart Protection: Rated Output Power:11000W, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.
  • Three charging / Output modes: Utility Priority / Solar Priority / Inverter Priority to meet your different requirements.
  • Time-slot charging/discharging function: Inverter is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

Free shipping

24 hours local delivery

Free returns

NO VAT

Secure payments

User Manual
Request a quote

EASUN POWER Soalr Inverter 11000W 230V 48V 50hz/60hz 500vdc PV Input 150A MPPT Solar Charger Built-in WIFI Support Lithium BMS

  • Buint-in Wifi For Mobile Monitoring(Android/IOS Apps Are Available)

  • Supports USB On-the-Go function

  • Lithium battery BMS support (Pylontech, Weco, Soltaro)

  • Replaceable fan design for ease of maintenance

  • Batteryless operation (single unit mode only)

  • Configurable AC/PV Outout Usage Timer And Prioritization

  • Selectable high power charging current Selectable input voltage range for home appliances and personal

  • Compatible to Utility Mains or generator input

  • Built-in anti-dust kit

  • Optional DC output for DC fan, LED bulb,router and so on

  • Parallel operation up to 6 units,Built-in parallel kit

  • Detachable LCD remote display

  • High PV input design, 500V (Voc) max input

  • Can work without battery



MODEL

Isolar SMW 11KW

Rated Power

11000VA/11000W

Parallel Capability

YES, 6 units

INPUT

Voltage

230 VAC

Selectable Voltage Range

170-280 VAC (For Computers)

90-280 VAC (For Home Appliances)

Frequency Range

50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC ± 5%

Surge Power

22000VA

Efficiency (Peak)

93%

Transfer Time

10 ms (For Personal Computers), 20 ms (For Home Appliances)

Waveform

Pure sine wave

No Load Power Consumption

<70W

Dual Outputs

Yes

BATTERY

Battery Voltage

48 VDC

Floating Charge Voltage

54 VDC

Overcharge Protection

63 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type

MPPT

Maximum PV Array Power

11000W

MPPT Range @ Operating Voltage

90 ~ 450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maxmum Solar Charge Current

150A

Maximum AC Charge Current

150A

Maximum Charge Current

150A

PHYSICAL

Dimension, D x W x H (mm)

147.4 x 432.5 x 553.6

Net Weight (kgs)

18.4

Communication Interface

USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10°C to 50°C

Storage Temperature

-15°C to 60°C

STANDARD

Compliance Safety

CE
