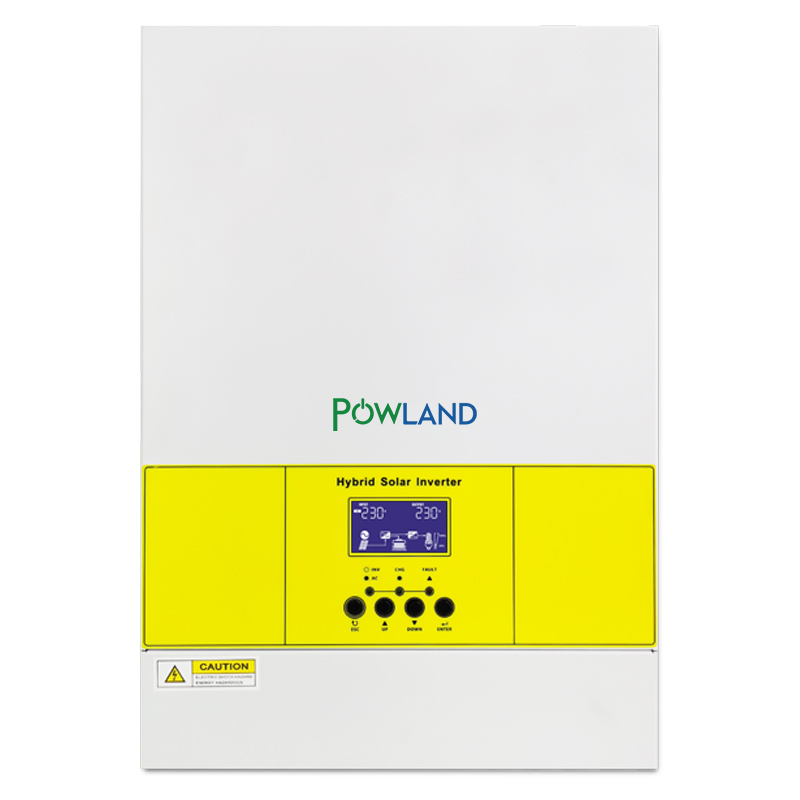

POWLAND 100A MPPT Solar Inverter 3600W Solar Charger Current Pure Sine Wave Off Grid Inverter PV 4000W 500VDC Input No Battery Ship From China
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Note: The inverter includes WiFi, which can be connected to mobile phone APP monitoring
Features:
*pure sine wave soalr inverter
*Output power factor 1
*High PV input voltage range
*Built-in MPPT soalr controller
*Battery equalization function to optimize
Battery performance and extend lifecycle
*Inverter running without barrery
*Built-in anti-dusk kit for harsh environment
*WIFI-GPRS remote monitoring(Optional)
*Detachable LCD(Optional)
|
MODEL
|
IsolarSMG II 3.6K
|
IsolarSMG II 5.6KP
|
|
CAPACITY
|
3.6KVA/3.6KW
|
5.6KVA/5.6KW
|
|
ParallelCapability
|
NO
|
YES
|
|
INPUT
|
|
NominalVoltage
|
230VAC
|
|
AcceptableVoltageRange
|
170-280VAC(ForpersonalComputer);90-280VAC(ForHomeAppliances)
|
|
Frequency
|
50/60Hz(Autosensing)
|
|
OUTPUT
|
|
NominalVoltage
|
220/230VAC±5%
|
|
SurgePower
|
7000VA
|
11000VA
|
|
Frequency
|
50/60Hz
|
|
Waveform
|
PureSinewave
|
|
TransferTime
|
10Ms(ForpersonalComputer);20Ms(ForHomeAppliances)
|
|
PeakEfficiency(PVtoINV)
|
96%
|
|
PeakEfficiency(BatterytoINV)
|
93%
|
|
OverloadProtection
|
5s@>=150%load;10s@110%-150%load
|
|
CrestFactor
|
3:1
|
|
AdmissiblePowerFactor
|
0.6-1(inductiveorcapacitive)
|
|
BATTERY
|
|
BatteryVoltage
|
24VDC
|
48VDC
|
|
FloatinghargeVoltage
|
27VDC
|
54VDC
|
|
OverChargeProtection
|
33VDC
|
63VDC
|
|
ChargingMethod
|
CC/CV
|
|
SolarCharger&ACCharger
|
|
SolarChargerTYPE
|
MPPT
|
|
Max.PV Array power
|
4000W
|
5500W
|
|
Max.PVArrayOpenCircuitVoltage
|
500VDC
|
|
PVArrayMPPTVoltageRange
|
120VDC-450VDC
|
|
Max.SolarlnputCurrent
|
15A
|
18A
|
|
Max.SolarChargeCurrent
|
100A
|
100A
|
|
Max.AC ChargeCurrent
|
60A
|
60A
|
|
Max.ChargeCurrent
|
100
|
100A
|
|
PHYSICAL
|
|
Dimensions,DxWxH(mm)
|
482x290x113
|
|
PackageDimensions,DxWxH(mm)
|
565x380x190
|
|
NetWeight(Kgs)
|
9
|
10
|
|
Communicationlnterface
|
USB/RS232/Dry-contact
|
|
ENVIRONMENT
|
|
OperatingTemperatureRange
|
-10℃to50℃
|
|
Storagetemperature
|
-15℃to60℃
|
|
Humidity
|
5%to95%RelativeHumidity(Non-condensing)
|
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
ISolar-SMG-II-3.6K-WIFI manual
ISolar-SMG-II-3.6K-WIFI WIFI setting
